• iBoot-IO GPIO Controlled Power device for remote reboot, test automation, and environmental control

iBoot-IO GPIO Controlled Power

iBoot-IO GPIO Controlled Power

$155.00
$155.00
Models
360 in stock

iBoot-IO

Power

12 Amps at 105-125 VAC, 10 Amps at 210-240 VAC

Switching

110-240 VAC 12 Amps Max

Plug Type

IEC C14 Inlet - IEC C13 Outlet

External I/O Functions

Screw-Terminals I/O: 1 control input (dry-contact), 1 feedback output (open collector to gnd up to 30 VDC)

Outlets

1 - IEC C13 - when Input closed power is off

Dimensions

2.0″ H × 3.2″ W × 4.2″ D

Cord Length

Nema 5-15 for North America use included - Input 6 Feet - Output 1.5 Foot (16 AWG x3C)

Warranty

3 Years

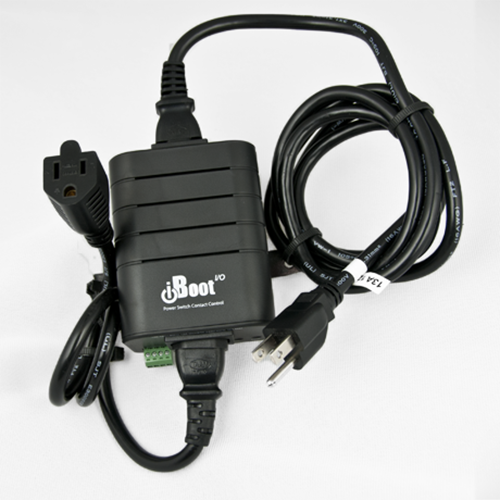

iBoot-IO is a single-outlet power switch with GPIO/logic-level control, designed for remote power management. It integrates easily with existing systems, supporting applications like remote reboot, automation, environmental control, and security access. Available in four models, it offers options for default power ON or OFF and supports both wet (3–12 VDC logic level) and dry contact inputs.

Request a Free Trial

Behavior Logic

The outlet is powered ON when the control input is open, and the power turns OFF when the input is closed.

Remote Power Control Anywhere

Reboot, turn on, or turn off devices from anywhere using a contact closure from an alarm system or switch.

External I/O for Automation

Features both input and output ports to connect sensors, alarms, or control systems, enabling fully automated power management and event-triggered actions.

Low cost solution

Convert low voltage switch capabilities to control AC power.
